應廣單片機是一種由應廣科技股份有限公司開發的微控制器IC，它具有高效能、低成本、高抗干擾和高可靠性的特點。
應廣單片機有多個系列，包括PMS、PFS、PFC、PMC、PFCU、PMSU等，適用于各種領域，如消費電子、工業控制、汽車電子、智能家居等, RF/IR遙控直升飛機,遙控車,PS游戲機,兒童智能玩具,動物語音玩具,游戲方向盤,兒童學習機等

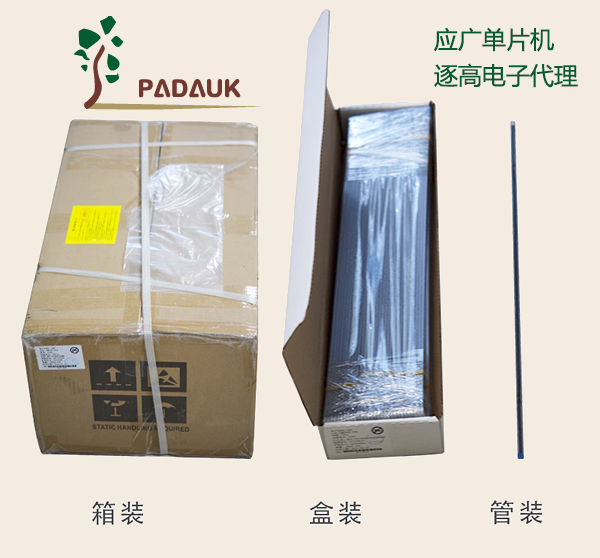

深圳市逐高電子有限公司分銷應廣單片機系列產品,型號齊全貨源優勢,我們是臺灣應廣單片機一級代理商,免費提供樣品
|
MTP – RapiDragon ( 迅龍 ) 直流應用(DC Application) • 采用 < 0.5um 低消耗 MTP/OTP 工藝
|
• Utilize < 0.5um low consumption MTP/OTP process • Very competitive price • Operating temperature：-20。C ~ 70。C Fields of Application： • Fit for battery based or DC powered products, eg toys etc • Not suppose to use in high EFT requirement applications |
||||||||
| Series | FPPA | ADC (max) |
IO (max) |
ROM (word) |
RAM (byte) |
LCD (½VDD) |
PWM |
Special Functions |
Package |
| PFS154 |
1 |
-- |
14 |
2KW |
128 |
4 |
8bitx211bitx3 |
CMPx1 |
SOT23-6, SOP8,MSOP10SOP14, SOP16 |
|
PFS172 |
1 |
8bitx12ch |
14 |
8bitx12ch |
128 | - |
8bitx2 |
CMPx1 |
SOT23-6, SOP8/14/16,MSOP10, QFN3x3-16L |
| PFS173 | 1 |
8bitx14c |
18 |
3KW |
256 |
5 |
8bitx211bitx3 |
CMPx1 |
SOT23-6, SOP8/14/16MSOP10, QFN3x3-16L |
| OTP – SOVA ( Series of Valuable and Affortable ) | |||||||||
| Series | FPPA | ADC (max) |
IO (max) |
ROM (word) |
RAM (byte) |
LCD (½VDD) |
PWM |
Special
Functions |
Package |
| PMS150C/G |
1 |
-- |
6 |
1KW |
64 |
-- |
8bit x 1 |
CMPx1 |
SOT23-6, SOP8 |
|
PMS152 |
1 | - | 14 |
1.25KW |
80 |
-- |
8bitx211bitx3 |
CMPx1 |
SOT23-6, SOP8/14/16MSOP10, QFN3x3-16L |
|
PMS154B/C |
1 |
-- |
14 |
2KW |
128 |
4 |
8bitx211bitx3 |
CMPx1 |
SOT23-6, SOP8/14/16MSOP10, QFN3x3-16L |
|
PMS171B |
1 |
8bitx12ch |
14 |
1.5KW |
96 | -- |
8bitx211bitx3 |
8x8Multiplier CMPx1 |
SOT23-6, SOP8/14/16MSOP10, QFN3x3-16L |
|
PMS133 |
1 |
12bitx14ch |
18 |
3KW |
256 |
4 |
8bitx211bitx3 |
8x8Multiplier CMPx1 |
SOP8/14/16,MSOP10HTSOP20, QFN3x3-16L |
|
PMS134 |
1 |
12bitx14ch |
22 |
4KW |
256 |
4 |
8bitx211bitx3 |
8x8Multiplier CMPx1 |
SOP8/14/16,HTSOP20,SOP/SSOP24, QFN4x4-24L |
| OTP – Commercial Grade | |||||||||
| Series | FPPA | ADC (max) |
IO (max) |
ROM (word) |
RAM (byte) |
LCD (½VDD) |
PWM |
Special
Functions |
Package |
|
PMS150 |
1 | -- | 6 |
1KW |
60 |
-- | -- | -- |
SOT23-6, SOP8 |
|
PMS153 |
1 | -- | 12 | 1KW | 64 | -- | -- | -- |
SOP14 |
|
PMS156 |
1 | -- | 16 | 1KW | 64 | 4 | -- | -- |
SOP14/16, SOP20 |
|
PMS130/131 |
1 |
12bitx12ch |
14 |
1.5KW |
88 |
-- |
8bitx |
8x8Multiplier |
SOT23-6, SOP8/14/16,MSOP1 |
|
PMS232 |
2 |
12bitx10ch |
18 |
2KW |
160 |
4 |
8bitx1 |
-- |
SOP14/16, SOP20,SSOP24 |
|
PMS234 |
2 |
12bitx11ch |
26 |
4KW |
208 |
4 |
8bitx1 |
CMPx1 |
SOP20, SOP24, SOP28 |
| MTP – LeapDragon ( 躍龍 ) 【 Excellent EFT Capability 】
• 采用<0.18um低功耗MTP和EEPROM工藝 • 靜電放電>8KV。 非常穩定，抗干擾能力極好 • 通過精密設計的 AC RC 降壓電路達到 EFT +/- 4KV • 寬工作溫度：-40。C ~ 85。C 應用領域： • 為需要優秀EFT能力的產品而生 • 也適用于需要強抗噪能力的電池產品，例如。 汽車、智能家居等
|
• Utilize <0.18um low consumption MTP and EEPROM process • ESD >8KV. Very stable, excellent anti-interference capability • Reach EFT +/- 4KV with trival designed AC RC step-down ckt • Wide operating temperature：-40。C ~ 85。C Fields of Application： • Born for the products required excellent EFT capability • Also suitable for battery based products required strong noise immunity, eg. automobile, intelligent household etc |
||||||||
| Series | FPPA | ADC (max) |
IO (max) |
ROM (word) |
RAM(byte |
EEPROM （ bit ） |
PWM |
Special
Functions |
Package |
|
PFC151 |
1 | - | 8 |
1.5KW |
88 |
|
8bitx2 |
CMPx1 |
SOP8/10,MSOP10,DIP8 |
|
PFC154 |
1 | - | 14 |
2KW |
128 | - |
8bitx211bitx3 |
OPAx1 CMPx1 |
SOP8/14/16,MSOP10,DIP8/14/16 |
|
PGC433 |
4 |
12bitx14ch |
18 |
3KW |
256 | 2K |
8bitx211bitx6 |
OPAx1 CMPx1 |
SOP8/14/16/20,HTSOP20,DIP8/14/16/20 |
|
PGC434 |
4 |
12bitx14ch |
26 |
4KW |
256 |
4K |
8bitx211bitx6 |
OPAx1 CMPx1 |
SOP8/14/16/20/24,HTSOP20,DIP8/14/16/20, SKDIP24/28 |
| OTP – Industrial Grade 【 High EFT capability 】
• 采用0.5um低功耗OTP工藝
|
• Utilize 0.5um low consumption OTP process • ESD >4KV. Very stable, strong noise immunity • Reach EFT ±4KV with careful designed AC RC step-down ckt • Wide operating temperature：-40。C ~ 85。C Fields of Application： • Fit for the products required high EFT capability • Also suitable for battery based products required strong noise immunity, eg. measurement, intelligent toys etc |
||||||||
| Series | FPPA | ADC (max) |
IO (max) |
ROM (word) |
RAM(byte |
LCD(½VDD） |
PWM |
Special Functions |
Package |
|
PMC150 |
1 | - | 6 |
1KW |
60 |
-- |
-- |
-- |
SOP8,DIP8 |
|
PMC153 |
1 | - | 12 |
2KW |
64 | 4 |
-- |
-- |
SOP14,DIP14 |
|
PMC156 |
1 |
-- |
16 |
1KW |
64 |
4 |
-- |
-- |
SOP14/16/18/20 DIP14/16/18/20 |
|
PMC251 |
2 | -- |
12 |
1KW |
60 |
-- | -- | -- |
SOP8, SOP14 ,DIP8,DIP14 |
|
PMC271 |
2 |
8bitx8ch |
16 |
1KW |
64 |
4 |
-- |
-- |
DIP(SO)8(P)/(8)1(/)4(1)/(4)1(/)6(1) |
|
PMC131 |
1 |
12bitx12ch |
14 |
1.5KW |
88 |
-- |
8bitx2 |
8x8Multiplier |
SOP8/14/16.MSOP10DIP8/14/16 |
|
PMC232 |
2 |
12bitx10ch |
18 |
2KW |
160 |
4 |
8bitx1 |
-- |
SOP14/16, SOP20,SSOP24DIP14,DIP16,DIP20 |
|
PMC234 |
2 |
12bitx11ch |
26 |
4KW |
208 |
4 |
8bitx1 |
CMPx1 |
SOP20/24/28, SSOP24 ,DIP20, SKDIP24,SKDIP28 |
,DIP20(SOP2)CMP = 比較器
OPA = 運算放大器
RFC = 頻率轉換器電阻
8x8 乘法器 = 8 位 x 8 位無符號乘法器
